Field: Function-Fied

You can use a function field to create a field that calculates input from multiple number fields in the case, displays the contents of fields from tasks, or uses JavaScript to output a result in a fo…

Dennis Reichle
Updated by Dennis Reichle

You can use a function field to create a field that calculates input from multiple number fields in the case, displays the contents of fields from tasks, or uses JavaScript to output a result in a formula field.

Function fields "Sum" and "Multiply"

Function field

Description

Sum

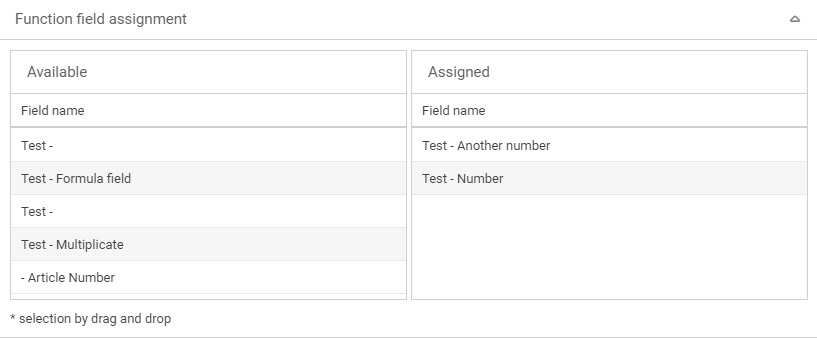

A sum field calculates the sum of several number fields, which must be assigned in the field properties.

Only fields of the type "Number" are available for the assignment.

Multiply

A multiplication field calculates the product of several number fields, which must be assigned in the field properties.

Only fields of the type "Number" are available for the assignment.

Function field "Show field from activity"

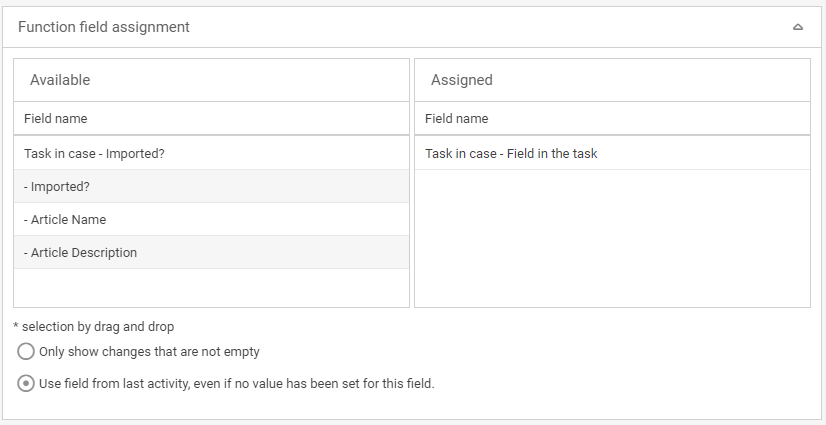

This field can be used to display the field contents of a field from a task in the main form. To do this, the corresponding field from the task must be assigned to the function field in the field properties.

There are two options from which you can choose which field value is read.

Option

Beschreibung

Only show changes that are not empty

Displays a value in the field only if the field in the task is not empty.

Use field from last activity, even if no value has been set for this field

Always displays the value of the field from the task, even if this field was not filled in the task.

A field value can only be displayed if the task has been executed and saved.
It is recommended that the fields that should be evaluated in a report are brought into the main form as function fields and stored in the "Invisible fields" area. In reporting, all data is then directly available for reporting.

Function field "Show field from parent case"

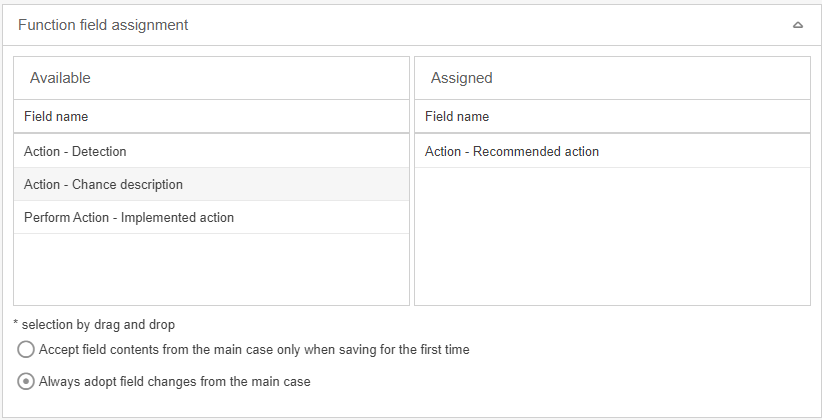

This field is only available in tasks. This field can be used to transfer fields from the main form to the task forms. To do this, the field from the main form must be assigned accordingly in the properties.

You can choose from two options for the assignment.

Option

Beschreibung

Accept field content from the main case only when saving for the first time

The value of the field from the main form of the parent case is only taken over when the task is created. If the value in the main form is changed afterwards, the value in the task does not change.

Always adopt field changes from the main case

The value of the field from the main form of the parent case is taken over when the form is created. If the value in the main form is changed, it will be automatically adjusted in the task as well.

Function field "Formula"

Knowledge of the JavaScript programming language is required to configure calculation fields.

Statements are entered as formulas in JavaScript. These statements are evaluated and the result of the formula is then displayed in the formula field in the main form.

There are several types of calculation fields.

Formula field

Description

Number

The output of the calculation field must be a number.

Text is not output. A calculation field of type Number can be used to calculate totals or products.

Text

The output of the calculation field must be text.

Even if a number is output, it is treated as text.

Date

Output must be a date.

Multirow text

The output is displayed in a multiline text field.

Multirow formatable text

The output is displayed in a multi-line formatable text field.

Text formats that were taken into account in the formula are displayed accordingly in the operation.

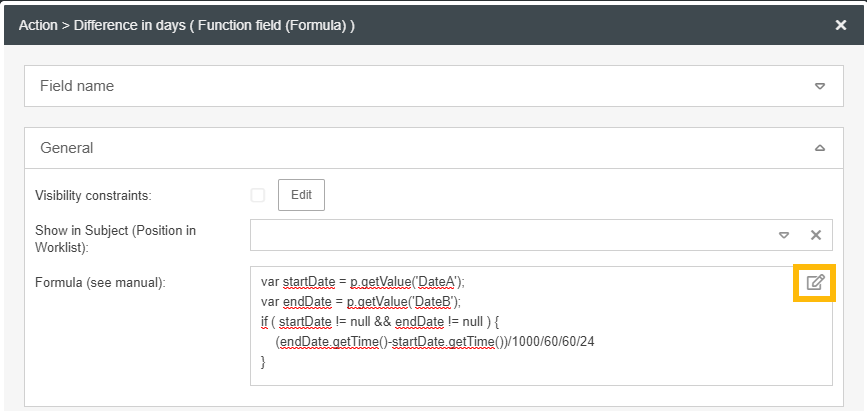

In the field properties of the formula field, you can open an editor by clicking the button in the field "Formula".

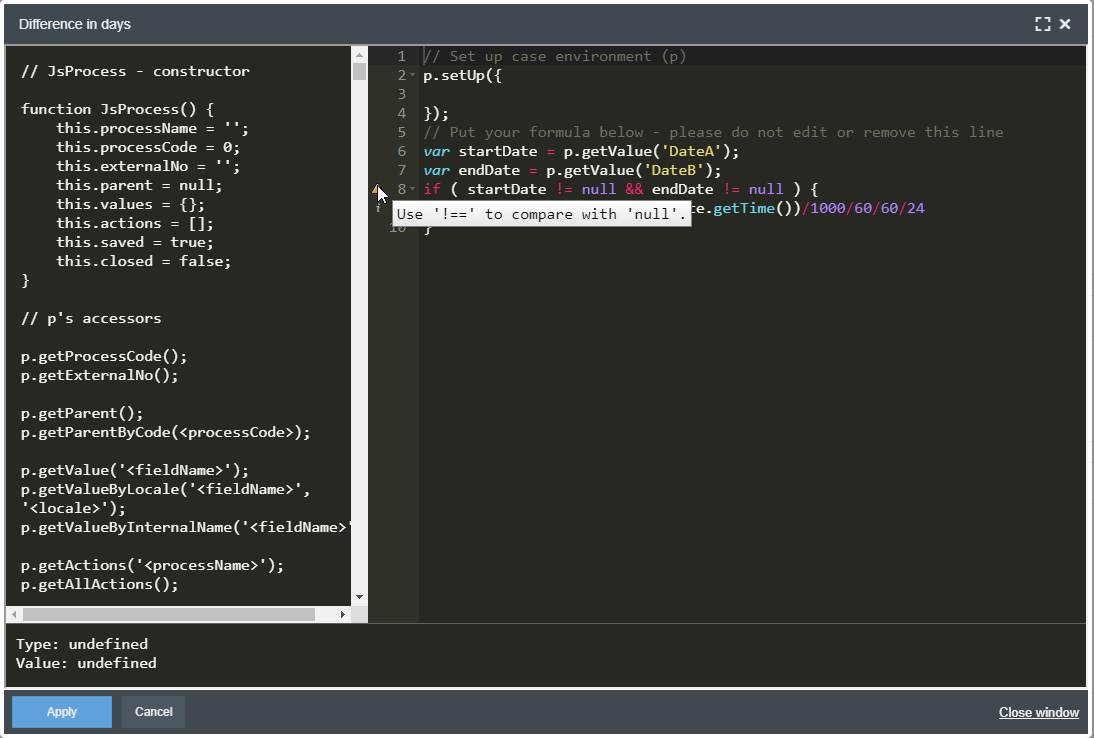

The editor lists the fields and methods that you can use to create the programming code on the left side. For the JavaScript code that you can insert in the middle of the window, the editor will mark syntax errors and other notes for improvement.

Examples of use of formula fields

The object p represents the operation form in which the calculation field is located.

It provides the following methods:

Method

Description

getValue('Fieldname')

Return value: String, Number or Date

Returns the contents of a form field. The type of the return value depends on the form field. For date and number fields, zero is returned if no value is entered.

isSaved()

Return value: Boolean

Indicates whether the operation has already been saved. This method is useful if you want the calculation field to evaluate only once when you create the task.

getExternalNo()

Return value: String

Returns the transaction number.

getParent()

Return value: Object

Returns the form of the parent task. If there is no parent operation, zero is returned.

getActions('Activity name')

Return value: Array

Returns the forms of the specified activity. If the activity has no activities with the specified name, an empty array is returned. The order of the activities corresponds to the order of their creation.

getCreator()

Return value: String

Returns the name of the creator in the format <last name, first name>.

getEditor()

Return value: String

Returns the name of the last editor in the format <last name, first name>.

getResponsible('en')

Return value: String

Returns the current responsibility for the case (entire path).

getDueDate()

Return value: Date

Returns the date currently set / monitored by the system.

Furthermore, all standard functions from JavaScript are available.

Example 1: The total of two form fields is calculated

p.getValue('FieldA')+p.getValue('FieldB');

Example 2: Calculating the sum of activity fields

var r = 0;
var actions = p.getActions(ActivityName>');
for ( var i = 0 ; i < actions.length ; i++ ) {
	r = r + actions[i].getValue('FieldNameFromActivity');
}
r;

 Example 3: Determine difference of two date fields in days

var startDate = p.getValue('DateA');
var endDate = p.getValue('DateB');
if ( startDate != null && endDate != null ) {
    (endDate.getTime()-startDate.getTime())/1000/60/60/24
}

Example 4: Read out field groups and collect them in one field

var result = "";
var actions = p.getActions('NameOfFieldgroup');
for ( var i = 0 ; i < actions.length ; i++ ) {
  var s = actions[i].getValue('FieldName');
  if ( s != null ) {
    if ( result == "" ) {
      result += s;
    } else {
      result += ", "+s;
    }
  }
}
result;

Example 5: Reading out, saving and not subsequently changing values

if (!p.isSaved()) {
   p.getValue('FieldName');
}
A description of the general field attributes that also apply to this field can be found:
General field properties
